EMI and ESD Filters in Mobile Phone Circuits

EMI and ESD filters play a critical role in protecting mobile phone circuits from electrical noise and sudden voltage spikes. These protection components help ensure stable performance, prevent hardware failure, and extend the lifespan of sensitive electronic parts.

What Is Electrostatic Discharge (ESD)?

Electrostatic Discharge (ESD) is a sudden flow of electricity between two objects with different electrical potentials. This discharge can occur through direct contact or when a strong electrostatic field causes current to jump across a gap.

Why ESD Is Dangerous to Mobile Phones

Modern mobile phones rely heavily on solid-state components such as integrated circuits (ICs). These components are manufactured using semiconductor materials like silicon and insulating layers such as silicon dioxide. Even a brief exposure to high voltage caused by static electricity can permanently damage these materials.

Common causes of ESD damage include:

• Touching circuit boards without grounding
• Plugging in chargers or accessories
• Environmental static buildup

ESD Protection in Mobile Phone Circuits

To prevent ESD-related failures, mobile phones are equipped with ESD protection devices. These components safely divert excess voltage away from critical ICs and signal lines before damage can occur.

Common ESD Protection Components

• TVS (Transient Voltage Suppressor) diodes
• ESD filter arrays
• Protective resistors

What Is Electromagnetic Interference (EMI)?

Electromagnetic Interference (EMI), also known as Radio Frequency Interference (RFI), is unwanted electrical noise that disrupts normal circuit operation. EMI can be transmitted through physical connections (conduction) or through the air (radiation).

Sources of EMI

EMI can originate from both natural and artificial sources, including:

• Nearby electronic devices
• High-frequency switching circuits
• Radio transmitters and antennas
• Natural phenomena such as solar activity

How EMI Filters Work in Mobile Phones

EMI filters are designed to suppress high-frequency noise while allowing normal signals to pass through unaffected. In mobile phones, these filters are commonly placed along data lines, display connectors, USB ports, and RF paths.

Functions of EMI Filters

• Reduce signal distortion
• Prevent data transmission errors
• Improve RF and audio performance
• Ensure compliance with regulatory standards

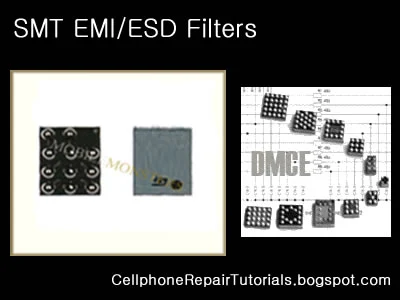

Combined EMI–ESD Protection Chips

Many modern mobile devices use combined EMI–ESD protection chips. These compact components provide both noise suppression and electrostatic discharge protection, making them ideal for space-limited smartphone designs.

Common Symptoms of Failed EMI–ESD Filters

• No charging or data connection
• Touchscreen not responding
• No network signal
• Intermittent hardware faults

Conclusion

EMI and ESD filters are essential safeguards in mobile phone electronics. By controlling electrical noise and preventing static damage, these components help maintain reliable performance and protect delicate circuitry. Understanding their function is especially valuable when diagnosing unexplained or intermittent hardware issues during phone repair.
